Mastering Commercial Kitchen Design Layout

Your kitchen's layout is arguably the single most important decision you'll make for your restaurant. It’s more than just placing equipment; it's the operational blueprint that dictates efficiency, keeps your staff sane, and ultimately, drives your profitability. A strategic commercial kitchen design layout has a direct impact on everything from ticket times to food waste.

Why Your Kitchen Layout Is a Critical Decision

Long before you finalize a menu or hire a single cook, the physical flow of your kitchen sets the stage for either success or failure. This isn't an exaggeration. We're not just trying to fit equipment into a room; we're engineering a system where every step has a purpose and every station works in harmony with the next.

A poorly designed kitchen creates constant friction. It’s a recipe for bottlenecks, stressed-out employees, and inconsistent service that can sink a business.

On the flip side, a well-planned layout becomes a silent, powerful partner in your operation. It naturally fosters clear communication, eliminates wasted steps, and builds a safer, more productive environment. This foundational work is what separates a chaotic, reactive kitchen from a high-performance culinary machine. The two pillars holding it all up are workflow and zoning.

The Foundation of Workflow and Zoning

• Logical Workflow: Think of this as the path your food takes, from the delivery truck to the customer's plate. The ideal workflow is a one-way street, preventing staff from constantly backtracking or bumping into each other. This simple concept can dramatically reduce accidents and speed up service.
• Purpose-Driven Zones: Instead of one large, jumbled space, your kitchen should be divided into distinct zones for specific tasks: receiving, storage, prep, cooking, and cleaning. Each zone should have the exact tools and equipment needed for its function, creating mini-environments built for peak efficiency.

A great commercial kitchen design layout doesn't just look good on paper; it feels intuitive to the staff working in it. The goal is to make the correct path the easiest path.

This deliberate approach to kitchen design isn't just a best practice; it's becoming a major industry focus. The global kitchen design service market was valued at around $20.5 billion in 2023 and is projected to climb to $32.8 billion by 2032. You can find more insights on this market growth on dataintelo.com.

Before you start drawing up plans, it's essential to step back and evaluate the core factors that will shape your design. This table breaks down the most critical considerations.

Key Considerations for Your Kitchen Layout

Factor	Why It Matters	Example Impact
Menu Complexity	A simple menu (e.g., pizza) needs a linear, assembly-line layout, while a complex fine-dining menu requires multiple, specialized prep stations.	A burger joint might have one long cookline, whereas a French bistro needs separate stations for garde manger, saucier, and pastry.
Available Space	The size and shape of your building (e.g., long and narrow vs. wide and square) will dictate which layout styles are even possible.	A narrow space might force an assembly-line layout, while a square room could accommodate an island-style design.
Budget	Your budget determines the quality and quantity of equipment, ventilation systems (HVAC), and custom fabrication you can afford.	A limited budget may require using multi-function equipment, while a larger budget allows for specialized, high-capacity units.
Health Codes	Local regulations mandate specific requirements for sink placement, storage temperatures, and the distance between raw and cooked food areas.	Health codes often require a three-compartment sink for washing and specific clearances around cooking equipment for fire safety.

Thinking through these elements first will save you from costly mistakes and ensure the layout you design is a perfect fit for your specific operational needs.

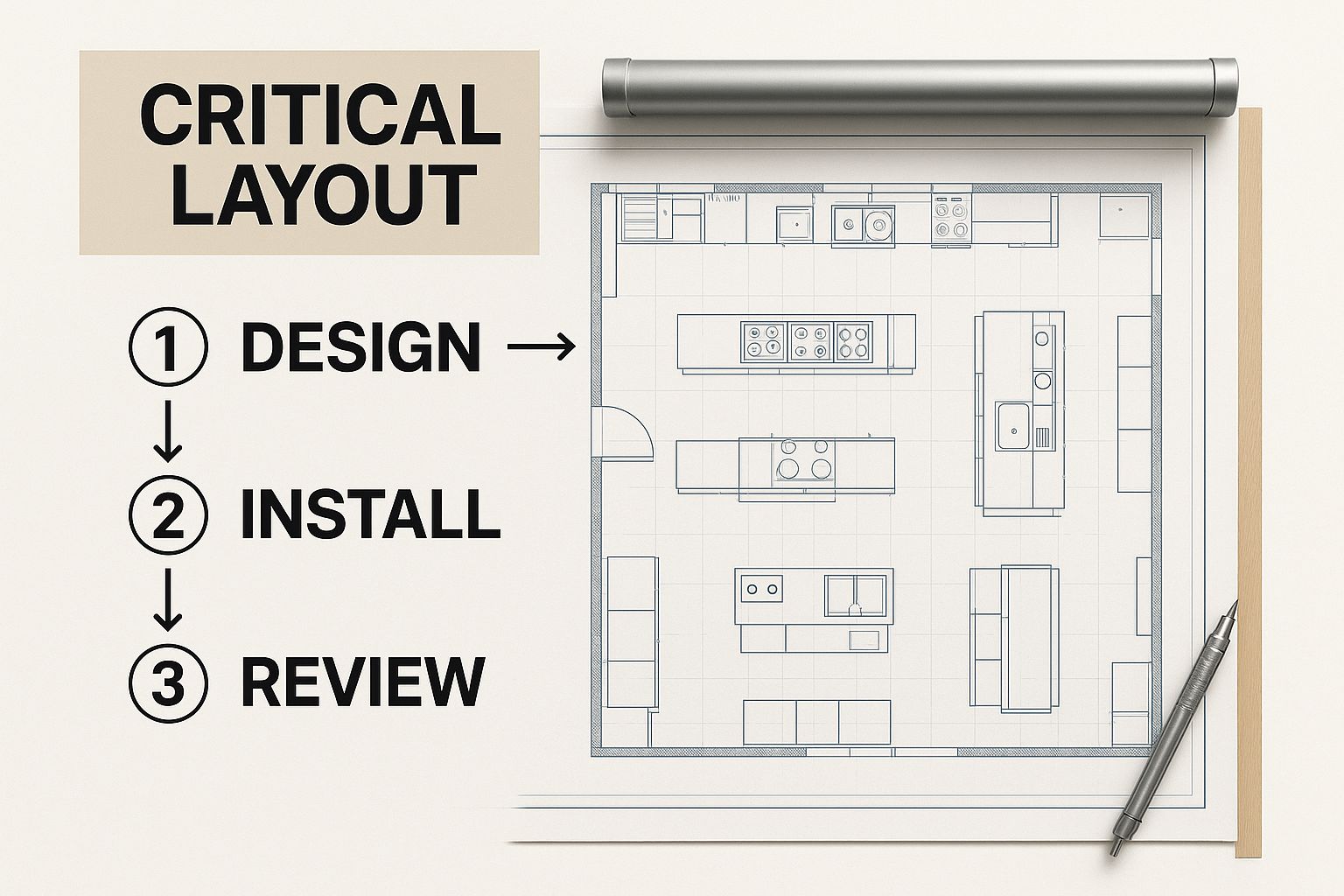

This kind of blueprint helps visualize the crucial connections between different work zones, ensuring a seamless process from the moment an order comes in to the second it's ready for service.

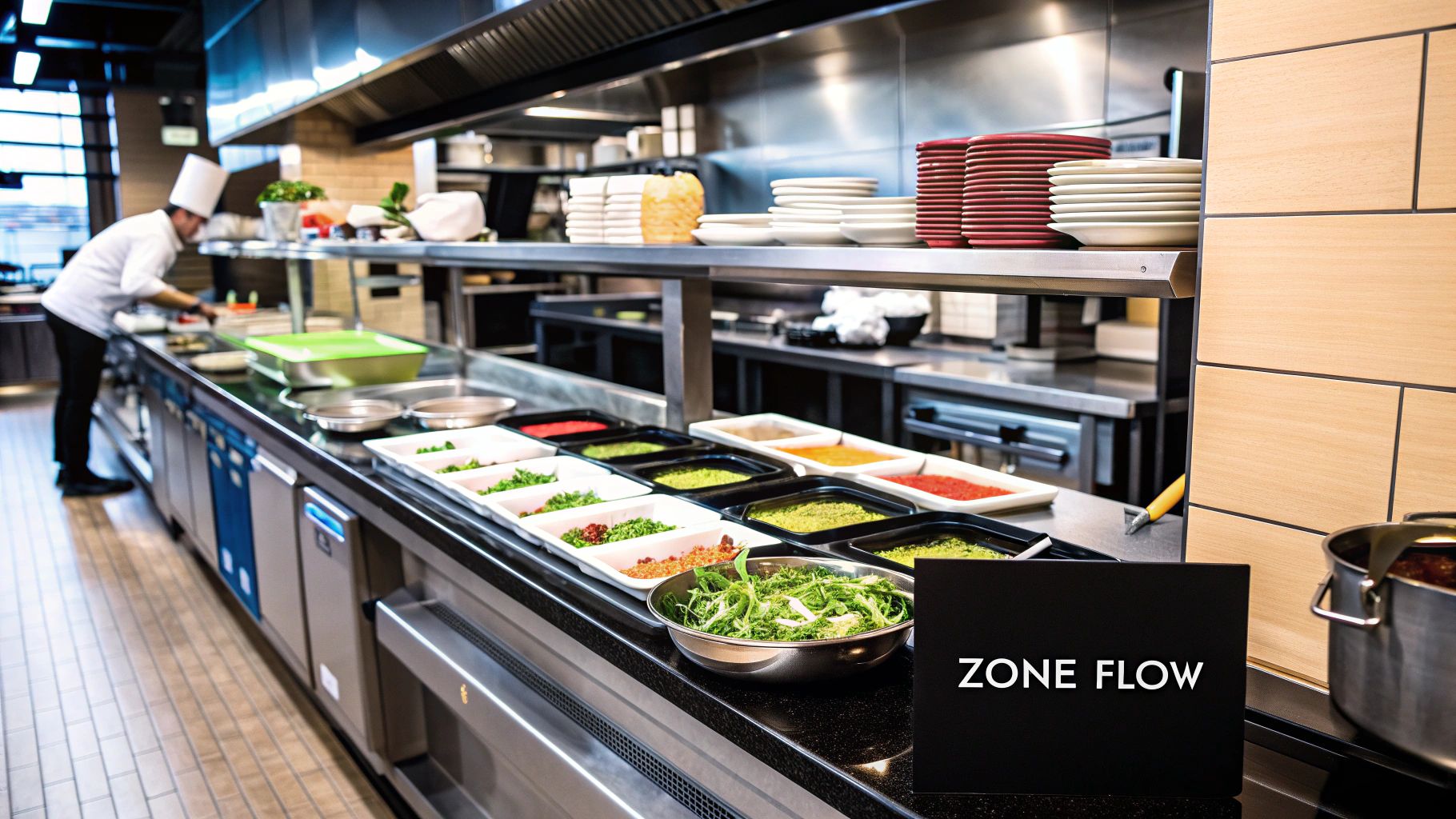

Designing Essential Kitchen Zones for Flawless Flow

An efficient kitchen isn't just one big, chaotic room. It’s a carefully orchestrated set of specialized zones, each with its own distinct purpose. Thinking in terms of "zones" is the real secret behind a commercial kitchen design layout that actually works.

When you create a logical, one-way workflow, you kill two birds with one stone: you eliminate staff traffic jams and dramatically cut down the risk of cross-contamination. The whole idea is to map out a clear path for food, from the delivery truck to the final plate, without any needless backtracking.

Receiving and Storage: The Gateway to Your Kitchen

This is where everything starts. Your receiving area is the first checkpoint for every raw ingredient, so it absolutely needs to be right near a back entrance for easy drop-offs. The flow here should be dead simple: receive, inspect, and get it into storage immediately. Let this area get cluttered, and the chaos will bleed into the entire kitchen.

To keep things organized and safe, you need to break this zone down into three specific sub-zones:

• Dry Storage: This is for your bulk goods. You'll want sturdy shelving (think metro racks for flour, sugar, and cans) set up for first-in, first-out (FIFO) rotation. Good ventilation is also a must to keep moisture out.
• Cold Storage: Here, you're looking at walk-in coolers and reach-in fridges. Their placement is critical—they have to be just as convenient for the receiving team as they are for the prep cooks grabbing ingredients.
• Frozen Storage: Just like cold storage, your freezers need to be easy to get to, but try to keep them out of the main traffic flow of the hot line to avoid constant door-opening.

Food Preparation: The Transformation Hub

After leaving storage, ingredients hit the prep zone. This is where a lot of kitchens go wrong. Don't just create one giant, all-purpose prep table for everything. The best layouts have dedicated stations that are built around the menu itself.

A busy restaurant, for instance, should have separate prep areas for raw proteins (to avoid cross-contamination), another for vegetables, and maybe even one for pastry. Each of these stations needs its own sinks, dedicated cutting boards, and the right tools. A pizzeria’s prep zone, with its dough sheeter and refrigerated topping rail, will look completely different from the garde manger station at a fine-dining restaurant.

Your prep areas are where efficiency is either won or lost. Placing them logically between storage and the main cooking line saves your staff thousands of steps per shift.

The Cooking Line: Where the Action Happens

The hot line is the heart and soul of your kitchen. The layout here has to directly support your menu and the speed of service you're aiming for. This is where you'll line up your heavy hitters: the ranges, fryers, griddles, and ovens.

Ventilation is absolutely non-negotiable. A powerful, high-capacity hood system is a major expense, but it's essential for safety and keeping your staff comfortable. Arrange the equipment in the sequence of cooking. A burger joint, for example, might have a flow that goes from the grill to a finishing station with cheese melters, and then directly to the plating area. It’s all about a logical progression.

Service and Warewashing: Closing the Loop

The service and plating station is the critical handoff point between your kitchen and the front of house. It needs to be right next to the cooking line for fast transfers but designed so servers can grab plates without getting in the way of the cooks. Heat lamps, plating surfaces, and ticket printers are the key players here.

Finally, you have the warewashing area, or "dish pit." You want this located away from food prep and cooking zones to prevent dirty water from splashing onto clean food. At the same time, it has to be convenient for servers to drop off dirty dishes and for cooks to grab clean pans. This completes the circle—from a clean plate to the customer, back to the dish pit, and then back into storage.

Choosing a Layout That Matches Your Menu and Space

https://www.youtube.com/embed/Rb2oYrvG7W0

There’s no such thing as a single "perfect" commercial kitchen layout. Forget the one-size-fits-all templates. The only layout that matters is the one that's perfect for your kitchen, your menu, and your team.

What works for a high-volume ghost kitchen cranking out delivery orders would be a disaster for a fine-dining spot. Your layout is a direct reflection of your concept, so let's start with a foundational principle of kitchen design: the work triangle.

The idea is simple: the three most-used areas—cooking (stove), cold storage (fridge), and cleaning (sink)—should form a natural triangle. To keep your chefs from wasting time and energy, research suggests each leg of this triangle should be between 1.2 and 2.7 meters. This small detail minimizes footsteps and maximizes output. Of course, modern kitchens are more complex than just three stations, but the core idea of minimizing movement is still the golden rule.

Let's look at the classic layouts and see where your operation might fit.

Assembly Line Layout

Picture a bustling sandwich shop or a build-your-own-bowl spot during the lunch rush. That’s the assembly line layout in its prime. All your stations and equipment are arranged in a straight, logical sequence—from raw ingredients to the finished product.

This setup is the champion of speed and consistency, making it a no-brainer for fast-food concepts, pizzerias, and cafeterias. Its strength is also its weakness, though. The rigid, linear flow doesn't leave much room for creativity or complex menus where multiple dishes are fired at once.

Island Layout

If you have the floor space and a more complex menu, an island layout might be your best bet. This design features a central block, usually housing the primary cooking equipment like ranges, grills, and fryers. Everything else—prep counters, storage, and the dish pit—lines the perimeter walls.

This creates a natural command center. The head chef can stand in the middle and oversee everything, directing the flow of service without running around. It’s a favorite in upscale, chef-driven restaurants for a reason. The major drawback? It requires a significant amount of square footage and won't work in a narrow, cramped space.

An Island layout isn't about a straight line; it's about creating a central hub for communication and collaboration. This makes it ideal for the dynamic, multi-step process of preparing intricate, multi-course meals.

Zone-Style Layout

The zone-style layout is all about organization. You essentially create several mini-kitchens within one larger space. You’ll have a dedicated sauté station, a grill station, a fry station, and maybe a separate garde manger for cold dishes and salads. Each zone is a self-sufficient pod with all the necessary tools and equipment.

This modular approach is fantastic for preventing cross-contamination and keeping a large, diverse menu from descending into chaos. You see this a lot in big operations like hotel restaurants and large catering kitchens. Getting the most out of this setup often comes down to smart storage, and using versatile shelving and storage units is key to keeping each zone tidy and efficient.

Galley Layout

When you're working with tight quarters, the galley layout is often your only move. Think food trucks, small cafes, or ghost kitchens. All your equipment and workstations are lined up along two parallel walls, creating a tight, efficient corridor for your staff.

While it's the most space-efficient design out there, it can get crowded fast. You have to be ruthless in your planning to ensure the aisle is wide enough to avoid traffic jams and keep everyone safe. A galley kitchen forces discipline—every station and every movement has to be perfectly choreographed.

A Practical Guide to Selecting and Placing Equipment

Your thoughtfully designed layout is really just lines on paper until you start bringing in the steel. This is the moment your kitchen starts to feel real, but it’s also where many operators make expensive mistakes they pay for down the road.

Before you fall in love with a six-burner range or a high-capacity fryer, get your hands on the spec sheets. These aren't just for checking dimensions; they're your guide to critical utility needs—gas, water, and electrical hookups. Finding out the fryer you bought needs a different gas line than you have installed is a costly, time-sucking problem you don't need during a build-out.

Balancing Your Budget with On-the-Line Performance

I get it. The temptation to shave costs by choosing cheaper equipment is huge. But in my experience, that's a classic case of being penny-wise and pound-foolish. That budget-friendly fryer might save you money today, but its poor energy efficiency will eat up those savings in utility bills over the next year.

Think in terms of total cost of ownership, not just the sticker price. Here’s what really matters:

• Energy Efficiency: Always look for ENERGY STAR® certified models. The upfront cost might be a little higher, but the long-term savings on your energy bills are substantial.
• Durability and Warranty: A solid warranty from a trusted brand isn't just a piece of paper. It’s your insurance against costly downtime and repair headaches when a crucial piece of equipment fails on a busy Friday night.
• Footprint: Space is money. Every square foot of your kitchen has to earn its keep. Select equipment that gives you the capacity you need without hogging unnecessary floor space.

When you're ready to start looking, a good supplier can be your best friend. Browsing a comprehensive Dallas restaurant supply catalog, for example, gives you a real-world look at the available options and helps you compare features and price points side-by-side.

The right equipment choice often comes down to your expected volume. What works for a small café would bring a bustling dinner service to its knees.

Equipment Selection Criteria

Criteria	Low-Volume Kitchen	High-Volume Kitchen
Capacity	Standard-duty, smaller capacity to match lower demand.	Heavy-duty, high-capacity models to handle continuous use.
Energy Rating	ENERGY STAR® is beneficial but may have a longer ROI.	ENERGY STAR® is crucial for managing high operational costs.
Durability	Medium-duty construction is often sufficient.	Heavy-duty stainless steel construction is non-negotiable.
Initial Cost	Lower upfront investment is a primary focus.	Higher initial investment for reliability and longevity is expected.
Warranty	Standard 1-year warranty may be adequate.	Extended warranties and service plans are highly recommended.

Ultimately, investing in robust, efficient equipment tailored to your volume protects your business from the operational drag of constant breakdowns and inflated utility costs.

Placing Equipment for a Smooth, Safe Flow

Once the equipment arrives, where it goes is just as important as what you bought. You’re not just fitting pieces into a puzzle; you’re building a functional, ergonomic workspace that keeps your team moving efficiently and safely.

The heart of the kitchen—your ranges, grills, and fryers—absolutely must live under a properly sized ventilation hood. This is a non-negotiable for fire safety and keeps the air breathable. Think about the path your cooks will take. Placing reach-in coolers and other commercial refrigeration units right next to their corresponding prep stations shaves critical seconds off every single order.

A pro tip I always share: leave more space around equipment than you think you need. It’s not just for cleaning. When a technician needs to service a fryer, you don’t want them to have to pull out half the cookline just to get access. Plan for maintenance from day one.

Staying Compliant with Health and Safety Codes

Let's be blunt: a brilliant kitchen layout that fails inspection is a nightmare. It’s a costly, time-sucking disaster that brings your project to a screeching halt. That's why navigating the maze of health codes, safety regulations, and accessibility standards isn’t a final checkbox. It has to be woven into your design from the very first sketch.

If you ignore these rules, you're looking at expensive rebuilds, a delayed grand opening, and potentially serious legal trouble. Local health departments have strict, non-negotiable requirements for everything, and your entire layout has to meet them. These aren't just friendly suggestions; they're the legal guardrails that keep your staff and customers safe.

The Non-Negotiables Inspectors Look For First

When an inspector walks through that door, their eyes are trained to spot common violations in seconds. They’re immediately scanning for the big things—proper ventilation, fire suppression systems, and the correct number and placement of sinks. Get these wrong, and you could be shut down on the spot.

Ventilation isn't just about keeping the air clear; it's a critical fire safety measure. Your entire cook line, from the ranges to the fryers, must sit directly under a commercial-grade ventilation hood that’s sized and powered to handle all that grease-laden vapor. In the same vein, your fire suppression systems, especially those with Class K extinguishers for grease fires, have to be professionally installed, certified, and easily accessible.

Think of health and safety codes as your blueprint's best friend. They aren't there to stifle your creativity. They're there to guide you toward a layout that's fundamentally safe and functional enough to withstand the pressure of a real commercial kitchen.

Sanitation is another area where inspectors don't compromise. They’ll be checking for non-porous, easy-to-clean surfaces everywhere. This means stainless steel countertops and durable, sealed flooring are your go-to materials. Anything that can trap bacteria, like unsealed wood or porous tile grout, is an instant red flag.

Designing for People Safety and Accessibility

Beyond food safety, your layout has to protect the people working in it. This means creating aisles wide enough for staff to move safely, even during the controlled chaos of a dinner rush. A main walkway should be at least 48-60 inches wide, which gives two people enough room to pass each other without a collision.

Emergency readiness also needs to be built right into the plan. You absolutely must ensure that:

• Emergency exits are clearly marked and are never, ever blocked. Pushing a few boxes in front of an exit door, even for a minute, is a serious violation.
• Fire extinguishers are visible, within easy reach, and regularly inspected. Don't just find a place for them later; plan their locations from the start.
• Handwashing stations are strategically placed and always stocked. Codes are very specific about this, requiring dedicated handwashing sinks separate from your dishwashing or food prep sinks.

Ultimately, designing for compliance is all about proactive collaboration. Get your architect and contractors in the loop from day one, and make sure these requirements are integrated into the blueprint. This approach turns regulatory hurdles into just another part of the design process, ensuring your kitchen isn't just efficient, but safe, legal, and ready for opening day.

Building a Future-Proof and Sustainable Kitchen

A great kitchen layout solves today's problems. A brilliant one anticipates tomorrow's. You're not just building for opening day; you're building a resilient, intelligent, and sustainable operation that will keep costs down and performance high for years to come.

This means embracing smart technology. And I don't just mean a fancy digital thermostat. We're talking about a fully connected kitchen where IoT-enabled equipment talks to each other, giving you real-time data and automating tedious tasks. Picture ovens that adjust cook times on the fly or a walk-in cooler that texts you the second its temperature fluctuates, saving you from a potential five-figure food loss.

This isn't science fiction anymore; it's rapidly becoming the industry standard. In fact, some 73% of restaurant operators are already boosting their tech investments to make their kitchens run smoother. You can see more on how technology is shaping modern kitchen trends and completely changing the game. It’s a strategic move that pays for itself by cutting down on human error and slashing energy consumption.

Weaving Sustainability into Your Blueprint

Let's be clear: sustainability isn't just a buzzword. It's a rock-solid business strategy that delivers a real return on investment. A sustainable kitchen design is all about cutting down on resource consumption, which hits your bottom line directly through lower utility bills and less waste. The best way to tackle this is with a one-two punch: choosing the right equipment and designing smarter workflows.

Start with the big energy hogs. The single most effective thing you can do is insist on ENERGY STAR® certified equipment for everything from refrigeration to warewashing. These machines are engineered for peak performance while using a fraction of the energy and water. Just upgrading an old ventilation system to a smart, energy-saving canopy hood can cut its energy use by a massive 30%.

But the equipment is only half the battle. Your layout itself can be your greatest sustainability tool.

• Integrated Waste Sorting: Don't just stick a few bins in a corner. Design dedicated sorting stations right into your warewashing and prep zones for compost, recycling, and landfill. This makes sorting a seamless part of the workflow, not an annoying chore.
• Optimized Water Usage: Think about your plumbing. Grouping high-water-use stations like dish machines and prep sinks together creates shorter, more efficient plumbing runs. That simple move saves both water and the energy needed to heat it.

By baking these smart and sustainable practices right into your commercial kitchen design layout, you’re creating an operation that's not just cheaper to run, but one that also resonates with today's eco-conscious staff and customers. If you're looking to create content that really dives into these nuances, a well-researched restaurant equipment blog post can be an incredibly powerful tool.

Common Kitchen Design Questions Answered

When you're knee-deep in sketches and equipment lists for a new commercial kitchen, a few key questions always seem to pop up. Getting straight, practical answers is what separates a smooth-running operation from one plagued by costly, frustrating problems down the road. Let's tackle some of the most common ones I hear.

Biggest Mistakes and Aisle Space

Without a doubt, the single biggest—and most expensive—mistake is trying to cram in too much equipment at the expense of proper workflow. It’s a classic trap. You create tight, clunky aisles and choke points that absolutely destroy your ticket times. You have to prioritize a logical flow, from the back door where deliveries arrive all the way to the service line. Sometimes that means letting go of a piece of equipment you thought you needed.

So, what’s the magic number for aisle space? While your local health department has its own minimums, real-world efficiency demands more. You’ll want a comfortable 36-42 inches for any aisle where a single person is working. For the main arteries of your kitchen—the high-traffic zones where staff are constantly moving past each other—you need to open that up to 48-60 inches. Anything less is just asking for collisions and service delays.

Sacrificing aisle space is a rookie error that can cripple even the most talented kitchen team. It creates a stressful, unsafe environment and puts a hard ceiling on how fast your entire operation can run.

Best Layouts for Small Spaces

What if you’re dealing with a space that’s less than generous? For smaller restaurants, the Galley and Assembly Line layouts are lifesavers. They're all about maximizing efficiency in a tight footprint.

• A Galley layout is brilliant for this. You line up your equipment along two parallel walls, creating a lean, mean work corridor where everything is just a pivot away.
• An Assembly Line setup is the go-to for linear menus—think build-your-own-bowl spots, pizzerias, or sub shops. It moves the food logically from one station to the next, eliminating any wasted steps.

Building in Flexibility for the Future

Let's be realistic: your menu is going to change. Your kitchen needs the agility to change with it, and that doesn't mean a full gut-and-remodel every few years. The secret is mobility.

Putting equipment on casters is a game-changer. Think mobile prep tables, holding cabinets, and even fryers that you can rearrange as your menu or workflow evolves. Another smart move is investing in multi-functional gear, like a combi-oven that can steam, roast, and bake all in one unit. It's all about building in versatility from day one.

For more deep-dives into getting the most out of your space and gear, feel free to explore our additional restaurant equipment blog posts.

---
